Lifting Eye or Eye Bolt Specifications

PRECISION FORGING - HIGHER TENSILE STRENGTH

• Eye bolt made with precision forging, from a special alloy steel.
• High precision performance is achied with a special heat treatment process.
• The force angle of the link ring is automatically adjusted when it is pulled in a direction.
• The working tensile strength is the same in any direction. The safety factor is 4:1.
• The surface is coated with an expoxy resin, which effectively prevents corrosion.
• Allen Key and hex nut which allows the eye bolt to be tightened properly.
• A wide range of swivel eye bolts are available - M8 to M48, 0.3 to 12.0 Tons Working lifting load.
• Metric threaded eye bolts are kept in stock, but UNC, UNF, BSW, etc. threads can be made available on request.
• Suitable for deep and through holes.

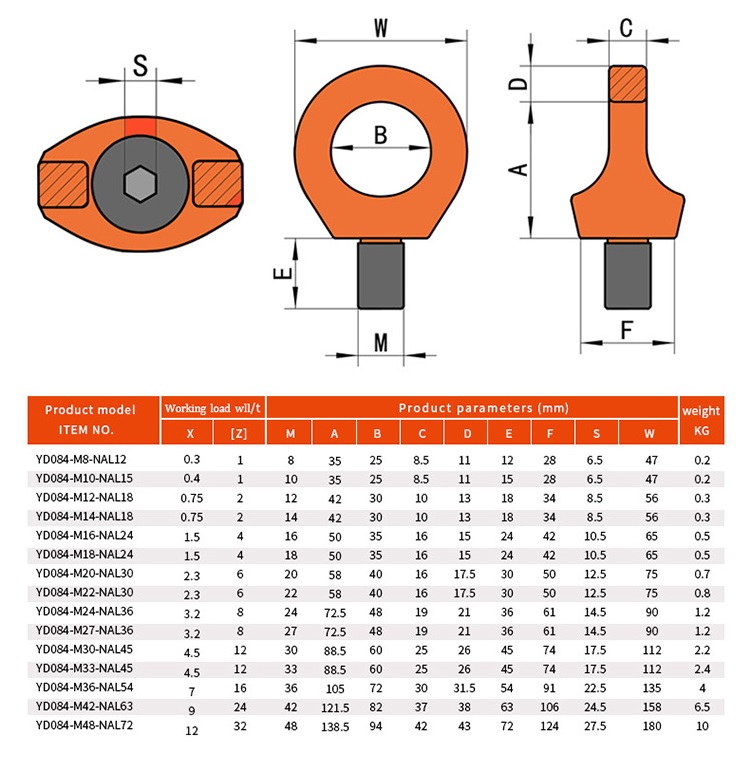

Eye Bolt or Lifting Eye Dimension Tables

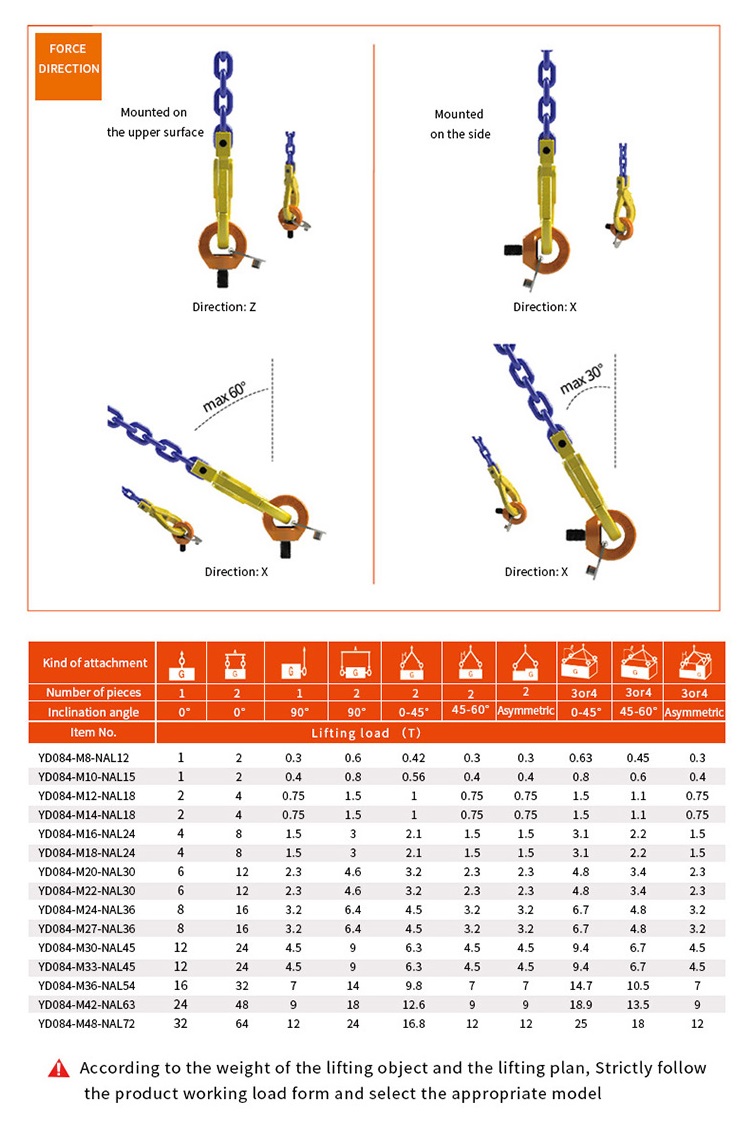

Eye Bolts or Lifting Eyes Lifting Scheme

Eye Bolts or Lifting Eyes Product Parameters
